Gas Filter Cartridge – GFC Element

Product Description

Patent No. 7,332,010

-To order TM Filtration Filter Cartridges please call 814-453-5014 ext. 323-

gfc

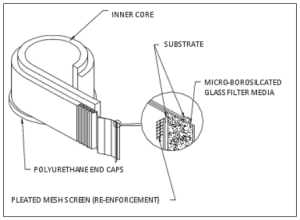

  • The outer layer of the element is a Pleated Mesh Screen, which acts as a re-enforcement.
  • The Substrate is a spun bond polyester, which acts as a solid particulate filter layer (3 micron).
  • The Micro Borosilicate Glass is the coalescing filtration layer (3 micron absolute).
  • The Inner Core is a polypropylene tube which is designed to polish the Gas. This also functions as a liquid barrier, that only allows gas to pass.
Download Page as PDF Download Catalog Request a Quote

Product Specifications

    Components

  • PLEATED MESH SCREEN
  • SUBSTRATE
  • FILTER MEDIA
  • INNER CORE
  • END CAPS

    • MATERIAL

  • METALLIC SCREEN
  • SPUN BONDED POLYESTER
  • MICRO BOROSILICATED GLASS
  • SINTERED POLYPROPYLENE TUBE
  • POLYURETHANE

    • PURPOSE

  • RE- ENFORCEMENT, PARTICULATE RETENTION
  • PARTICULATE FILTRATION
  • COALESCING, AEROSOL RETENTION
  • FINAL GAS POLISHING, LIQUID BARRIER
  • RIGIDITY, SEALING SURFACE
Notes: Caliper Test :The thickness measured at a specific pressure. Frazier Test : The column of air, in CFM , that can flow through 1 square foot of media 0.5 W.G. pressure drop . Mean Flow Pore : The average particle size. Flat Sheet Multipass Efficiency: Beta 200 or 1000: Size of contaminant that can be captured with a efficiency of 99.5% for Beta 200, and 99.95% for Beta 1000. DOP Penetration test: 0.3 micron particle @ 32 l/min/cm2
